Difference Between DataSet and DataTable



Difference Between DataSet and DataTable



               DataSet                   DataTable
1
DataSet can fetch multiple TableRows at a time.
DataTable fetches only one TableRow at a time.
2
A DataSet is like structure which has collection of DataTables.
A DataTable is  a single database table which has collection of rows and columns.
3
DataSet, DataTable objects can be related to each other with DataRelation objects.
DataTable is a single database table, so there is no DataRelation object in it.
4
DataSet is serialized DataSource .
DataTable, DataSource cannot be serialized.
5
DataSet, data integrity is enforced by using the Unique Constraint and ForeignKeyConstraint objects.
DataTable, there is no Unique Constraint and ForeignKeyConstraint objects available.











How to Insert New Row Using GridView Footer in Asp.Net.


Insert New Row Using  GridView Footer



Gridview Bind to Data Table. But Add Gridview Footer  Row Directly.


Insert Data Using Gridview Footer Row

                                                DEMO





Html Coding


<%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default" %>

<!DOCTYPE html>


<html xmlns="http://www.w3.org/1999/xhtml">
<head id="Head1" runat="server">
    <title></title>
</head>
<body>
    <form id="form1" runat="server">
    <div>

        <asp:gridview ID="Gridview1" runat="server" AutoGenerateColumns="False"
            OnSelectedIndexChanged="Gridview1_SelectedIndexChanged" ShowFooter="True">
             <Columns>
           <asp:TemplateField HeaderText="Action">
             <FooterTemplate>
             <asp:LinkButton ID="LinkButton1" runat="server"
                  CommandName="Select">Insert</asp:LinkButton>
             </FooterTemplate>
             </asp:TemplateField>
             <asp:TemplateField HeaderText="Name">
             <FooterTemplate>
             <asp:TextBox ID="txtName" runat="server"></asp:TextBox>
             </FooterTemplate>
             <ItemTemplate>
             <asp:Label ID="Label1" runat="server" Text='<%# Eval("name"%>'></asp:Label>
             </ItemTemplate>
             </asp:TemplateField>
             <asp:TemplateField HeaderText="Email ID">
             <FooterTemplate>
            <asp:TextBox ID="txtEmailID" runat="server"></asp:TextBox>
            </FooterTemplate>
            <ItemTemplate>
            <asp:Label ID="Label2" runat="server" Text='<%# Eval("email"%>'></asp:Label>
            </ItemTemplate>
            </asp:TemplateField>
            <asp:TemplateField HeaderText="City">
            <FooterTemplate>
           <asp:TextBox ID="txtCity" runat="server"></asp:TextBox>
          </FooterTemplate>
          <ItemTemplate>
         <asp:Label ID="Label3" runat="server" Text='<%# Eval("city"%>'></asp:Label>
         </ItemTemplate>
        </asp:TemplateField>
             </Columns>
        </asp:gridview>

    </div>
    </form>
</body>
</html>




C# Coding



using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Data;
using System.Data.SqlClient;

public partial class Grid_Insert : System.Web.UI.Page
{

    SqlConnection con;
    SqlCommand cmd;
    SqlDataAdapter adp;
    SqlDataReader rd;
    DataSet ds;
    string query;


    public void dbcon()
    {
        string connn = (System.Configuration.ConfigurationManager.
ConnectionStrings["dbcon"].ToString());
        con = new SqlConnection(connn);
        con.Open();

    }

    protected void Page_Load(object sender, EventArgs e)
    {
        if (!IsPostBack)
        {
            bind11();
        }
    }


    protected void bind11()
    {
        dbcon();
        query = "select * from grid";
        cmd = new SqlCommand(query, con);
        adp = new SqlDataAdapter(cmd);
        ds = new DataSet();
        adp.Fill(ds);
        rd = cmd.ExecuteReader();
        if (ds.Tables[0].Rows.Count > 0)
        {
            Gridview1.DataSource = ds;
            Gridview1.DataBind();
        }
        else
        {
            ds.Tables[0].Rows.Add(ds.Tables[0].NewRow());
            Gridview1.DataSource = ds;
            Gridview1.DataBind();
            int columncount = Gridview1.Rows[0].Cells.Count;
            Gridview1.Rows[0].Cells.Clear();
           // GridView1.FooterRow.Cells.Clear();
            Gridview1.Rows[0].Cells.Add(new TableCell());
            Gridview1.Rows[0].Cells[0].ColumnSpan
 = columncount;
            Gridview1.Rows[0].Cells[0].Text = "No Records Found";
        }
    }


    protected void Gridview1_SelectedIndexChanged(object sender, EventArgs e)
    {

        TextBox txtNamee = (TextBox)Gridview1.FooterRow.
FindControl("txtName");
        TextBox txtEmaill = (TextBox)Gridview1.FooterRow.
FindControl("txtEmailID");
        TextBox txtCity = (TextBox)Gridview1.FooterRow.
FindControl("txtCity");

        dbcon();
  query = "insert into grid (name,email,city)values('"+txtNamee.Text+"',
'"+txtEmaill.Text+"','"+txtCity.Text+"')";
        cmd = new SqlCommand(query, con);
        cmd.ExecuteNonQuery();
        con.Close();

        bind11();
    }

}



First - Add the New - WebForm Grid_Insert.aspx

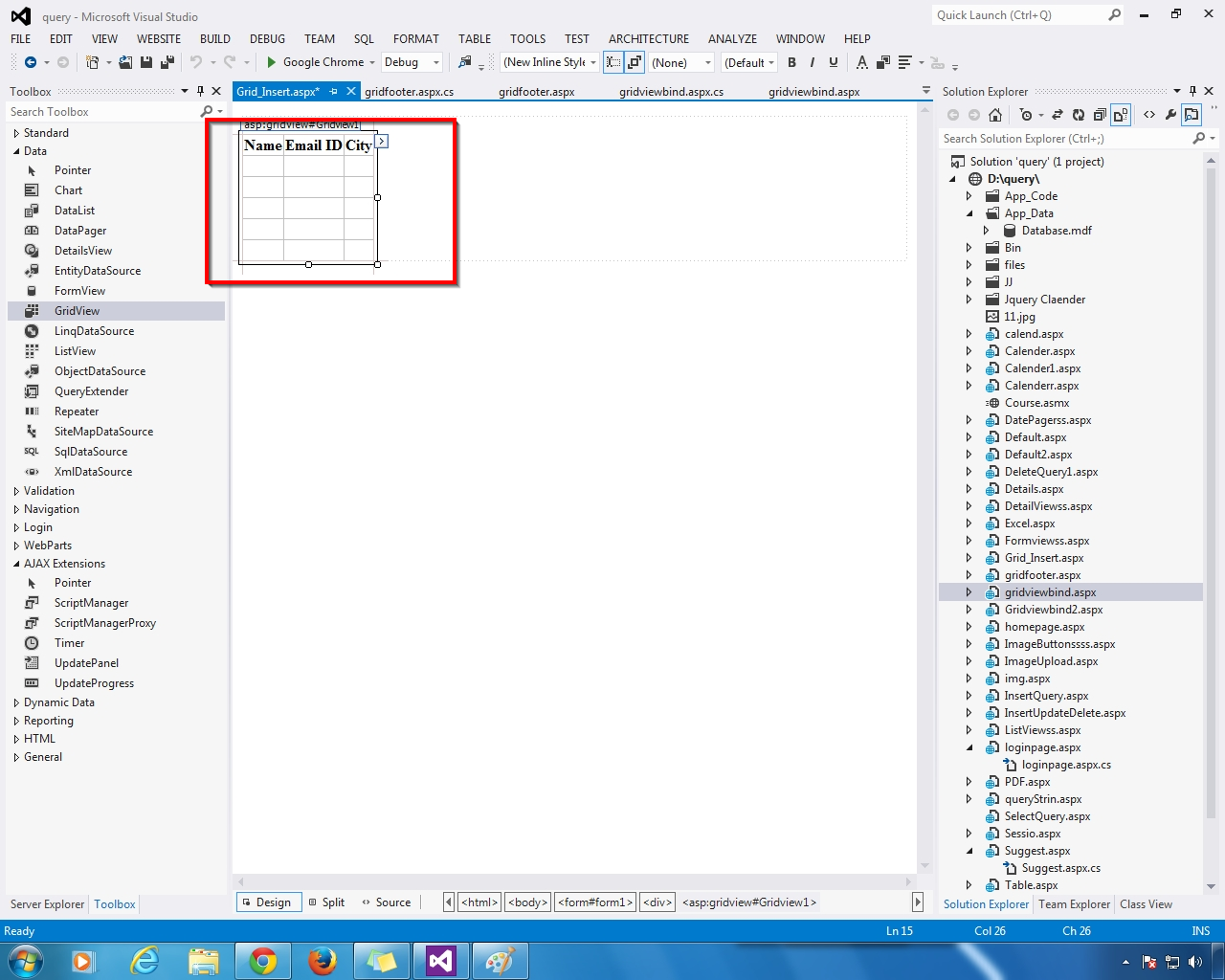

Next - Add the  GridView From Toolbox









Next - Create the  Table &  Add the Fields(Requireds)









Next - Right Click GridView  -  Select - Edit Column








Add  -  TemplateFields  &  Remove - Auto Generate Fields - OK









Next - Change the  All the  Templates Fields Header Text  Name









Next - Show the  GridView Colum Names








Right Click- GridView - Select - Edit Templates








Next - Add the Label to  Item Tempaltes  & Add Field Name = name to Edit DataBinding

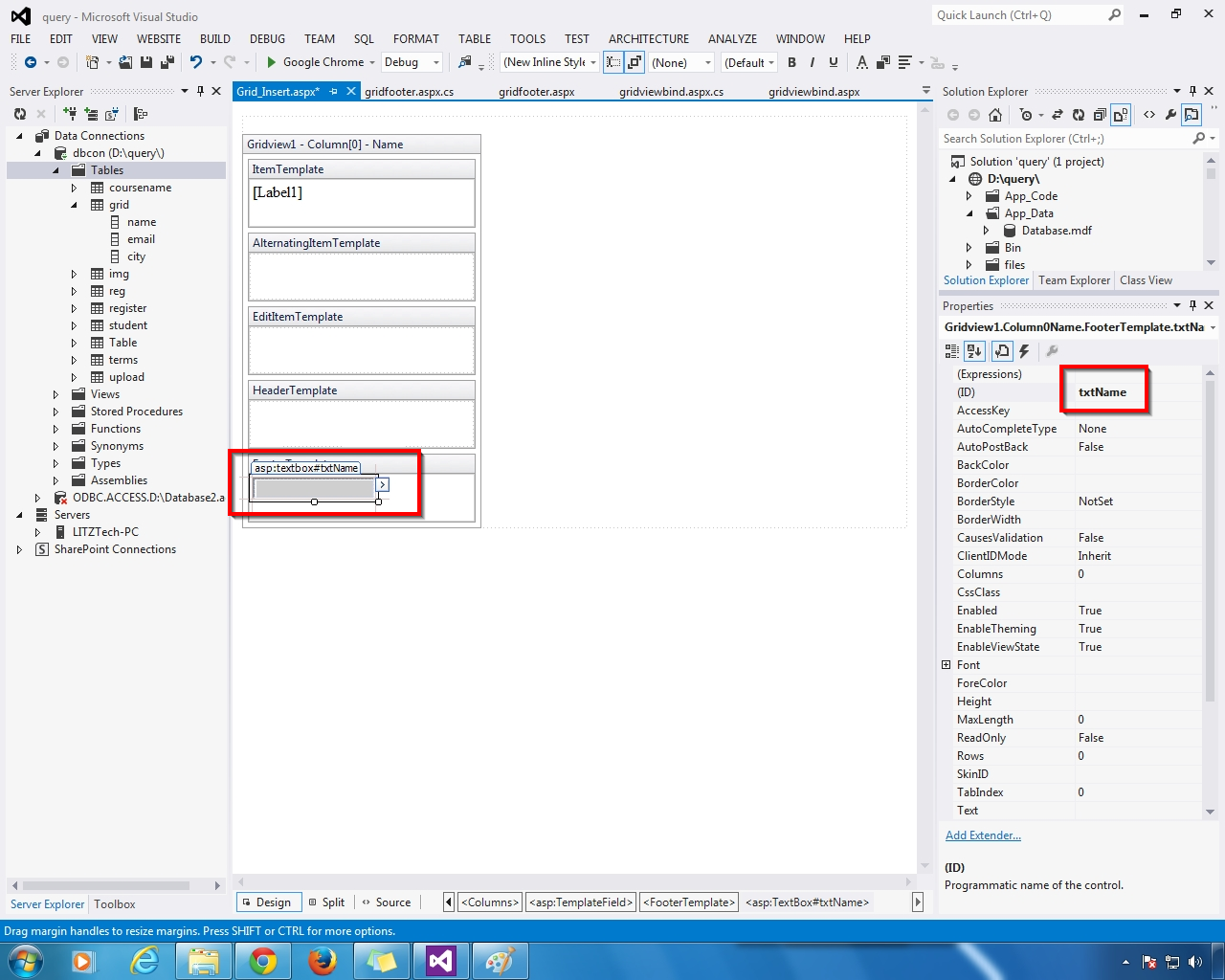

Next - Footer Templates Add TextBox  Change the ID








Next - Add the Label to  Item Tempaltes  & Add Field Name = email to Edit DataBinding









Next - Footer Templates Add TextBox  Change the ID







 Next - Add the Label to  Item Tempaltes  & Add Field Name = city to Edit DataBinding







Next - Footer Templates Add TextBox  Change the ID








Next - Select Edit Template Editing








Next - Select Edit column - Add Template Fields  Header Action









Next - Select  Action Column Footer Row  - Insert Linkbutton - Text = Insert & CommandName= Select









Select - Edit Template - Show The GridView  Below Like That









Next - GridView - Property - Select - ShowFooter = True








Next - Show the Html Coding







Next - Go To - Coding Part - Add NameSpaces &  Database Connection







New Class  Create - Select Table  & Double Click the GridView - Open -  Select Index Changed

Select - GridView Footer Row TextBox Id

Next - Insert  the Selected Values










Next - Select WebForm - Right Click - View in Browser (Run F5)








OUTPUT



 grid Table Empty  - Show No Records Found








Next - Insert  Values - Footer Row TextBox  &  Insert button Click







                     Inserted Values & Bind







Next - Insert Values & Insert Button Click







Bind The Inserted Values
