DataPager Control Using ListView Show Details in Asp.Net C#

22:31:00  , , , , ,  No comments

 DATAPAGER CONTROL


  DataPager control can be associated with the data-bound control by using the PagedControlID property. Alternatively, by putting the Gridview control inside the data-bound control hierarchy. For example, in the ListView control, DataPager control can be kept inside the ListView-LayoutTemplate

The number of items that are displayed for each page of data can be customized by changing the PageSize property. The way a page is submitted to the server can be changed by setting the QueryStringField property.

                       DEMO

 Html Coding
<html xmlns="http://www.w3.org/1999/xhtml">
<head id="Head1" runat="server">
    <title></title>
</head>
<body>


    <form id="form1" runat="server">

<asp:ListView ID="ListView1" runat="server" DataSourceID="SqlDataSource1">

            <AlternatingItemTemplate>
                <tr style="background-color: #FAFAD2;color: #284775;">
                    <td>
             <asp:Label ID="nameLabel" runat="server"
Text='<%# Eval("name") %>' />
                    </td>
                    <td>
 <asp:Label ID="emailLabel" runat="server" Text='<%# Eval("email") %>' />
                    </td>
                    <td>
                        <asp:Label ID="mobileLabel" runat="server"
Text='<%# Eval("mobile") %>' />
                    </td>
                    <td>
                        <asp:Label ID="usernameLabel" runat="server"
Text='<%# Eval("username") %>' />
                    </td>
                    <td>
                        <asp:Label ID="passwordLabel" runat="server"
Text='<%# Eval("password") %>' />
                    </td>
                </tr>
            </AlternatingItemTemplate>
            <EditItemTemplate>
                <tr style="background-color: #FFCC66;color: #000080;">
                    <td>
                        <asp:Button ID="UpdateButton" runat="server"
CommandName="Update" Text="Update" />
                        <asp:Button ID="CancelButton" runat="server"
CommandName="Cancel" Text="Cancel" />
                    </td>
                    <td>
                        <asp:TextBox ID="nameTextBox" runat="server"
Text='<%# Bind("name") %>' />
                    </td>
                    <td>
                        <asp:TextBox ID="emailTextBox" runat="server"
 Text='<%# Bind("email") %>' />
                    </td>
                    <td>
                        <asp:TextBox ID="mobileTextBox" runat="server"
 Text='<%# Bind("mobile") %>' />
                    </td>
                    <td>
                        <asp:TextBox ID="usernameTextBox" runat="server"
 Text='<%# Bind("username") %>' />
                    </td>
                    <td>
                        <asp:TextBox ID="passwordTextBox" runat="server"
Text='<%# Bind("password") %>' />
                    </td>
                </tr>
            </EditItemTemplate>
            <EmptyDataTemplate>
                <table id="Table1" runat="server" style="background-color: #FFFFFF;border-collapse: collapse;border-color: #999999;border-style:none;border-width:1px;">
                    <tr>
                        <td>No data was returned.</td>
                    </tr>
                </table>
            </EmptyDataTemplate>
            <InsertItemTemplate>
                <tr style="">
                    <td>
                        <asp:Button ID="InsertButton" runat="server"
CommandName="Insert" Text="Insert" />
                        <asp:Button ID="CancelButton" runat="server"
 CommandName="Cancel" Text="Clear" />
                    </td>
                    <td>
                        <asp:TextBox ID="nameTextBox" runat="server"
 Text='<%# Bind("name") %>' />
                    </td>
                    <td>
                        <asp:TextBox ID="emailTextBox" runat="server"
Text='<%# Bind("email") %>' />
                    </td>
                    <td>
                        <asp:TextBox ID="mobileTextBox" runat="server"
Text='<%# Bind("mobile") %>' />
                    </td>
                    <td>
                        <asp:TextBox ID="usernameTextBox" runat="server"
Text='<%# Bind("username") %>' />
                    </td>
                    <td>
                        <asp:TextBox ID="passwordTextBox" runat="server" Text='<%# Bind("password") %>' />
                    </td>
                </tr>
            </InsertItemTemplate>
            <ItemTemplate>
                <tr style="background-color: #FFFBD6;color: #333333;">
                    <td>
                        <asp:Label ID="nameLabel" runat="server"
 Text='<%# Eval("name") %>' />
                    </td>
                    <td>
              <asp:Label ID="emailLabel" runat="server"
Text='<%# Eval("email") %>' />
                    </td>
                    <td>
                        <asp:Label ID="mobileLabel" runat="server"
Text='<%# Eval("mobile") %>' />
                    </td>
                    <td>
                        <asp:Label ID="usernameLabel" runat="server"
Text='<%# Eval("username") %>' />
                    </td>
                    <td>
                        <asp:Label ID="passwordLabel" runat="server"
Text='<%# Eval("password") %>' />
                    </td>
                </tr>
            </ItemTemplate>
            <LayoutTemplate>
                <table id="Table2" runat="server">
                    <tr id="Tr1" runat="server">
                        <td id="Td1" runat="server">
                            <table id="itemPlaceholderContainer" runat="server" border="1" style="background-color: #FFFFFF;border-collapse: collapse;border-color: #999999;border-style:none;border-width:1px;font-family: Verdana, Arial, Helvetica, sans-serif;">
                                <tr id="Tr2" runat="server" style="background-color: #FFFBD6;color: #333333;">
                                    <th id="Th1" runat="server">name</th>
                                    <th id="Th2" runat="server">email</th>
                                 <th id="Th3" runat="server">mobile</th>
                                 <th id="Th4" runat="server">username</th>
                                 <th id="Th5" runat="server">password</th>
                                </tr>
                                <tr id="itemPlaceholder" runat="server">
                                </tr>
                            </table>
                        </td>
                    </tr>
                    <tr id="Tr3" runat="server">
                        <td id="Td2" runat="server" style="text-align: center;background-color: #FFCC66;font-family: Verdana, Arial, Helvetica, sans-serif;color: #333333;">
                            <asp:DataPager ID="DataPager1" runat="server">
                                <Fields>
                                    <asp:NextPreviousPagerField ButtonType="Button" ShowFirstPageButton="True" ShowNextPageButton="False" ShowPreviousPageButton="False" />
                                    <asp:NumericPagerField />
                                    <asp:NextPreviousPagerField ButtonType="Button" ShowLastPageButton="True" ShowNextPageButton="False" ShowPreviousPageButton="False" />
                                </Fields>
                            </asp:DataPager>
                        </td>
                    </tr>
                </table>
            </LayoutTemplate>
            <SelectedItemTemplate>
                <tr style="background-color: #FFCC66;font-weight: bold;color: #000080;">
                    <td>
                        <asp:Label ID="nameLabel" runat="server"
Text='<%# Eval("name") %>' />
                    </td>
                    <td>
                        <asp:Label ID="emailLabel" runat="server"
 Text='<%# Eval("email") %>' />
                    </td>
                    <td>
                        <asp:Label ID="mobileLabel" runat="server"
Text='<%# Eval("mobile") %>' />
                    </td>
                    <td>
                        <asp:Label ID="usernameLabel" runat="server"
 Text='<%# Eval("username") %>' />
                    </td>
                    <td>
                        <asp:Label ID="passwordLabel" runat="server"
Text='<%# Eval("password") %>' />
                    </td>
                </tr>
            </SelectedItemTemplate>
        </asp:ListView>
        <asp:SqlDataSource ID="SqlDataSource1" runat="server" ConnectionString="<%$ ConnectionStrings:dbcon %>" SelectCommand="SELECT * FROM [register]"></asp:SqlDataSource>
    </form>

</body>


</html>



DataPager Fields

In order for the DataPager control to display navigation controls, pager fields are added to the control that are derived from the DataPagerField class.


Pager field type
                            Description
NextPreviousPagerField
Enables users to navigate through pages one page at a time, or to jump to the first or last page.
NumericPagerField
Enables users to select a page by page number.
TemplatePagerField
Enables you to create a custom paging UI.



To declaratively add pager fields to the DataPager control, add a Fields element to the DataPager control. You can then add the pager fields to the Fields element. The pager fields are added to the Fields collection in the order that they appear in the Fields element. The Fields collection enables you to programmatically manage the pager fields in the DataPager control.

Page Properties

The following table lists read-only properties of the DataPager control that specify characteristics of the page of data. These properties are usually used for binding expressions in the TemplatePagerField object.

Property
                                Description
MaximumRows
The maximum number of records that are displayed for each page of data.
StartRowIndex
The index of the first record that is displayed on a page of data.
TotalRowCount
The total number of records that are available in the underlying data source.






First  - Add  - New Web Form -  Select - ListView From Data Toolbox  - Right Click  Select - New Data Source.

Create - One Table(register)  Insert  Minimum 15 Details





Show -  One PopUp Window  - Select - SQL Database  - OK Button Click





Next - Select DataBase Name(dbcon) -  Next Button Click








 Next  - Select  Required Table Name(register) -  Next Button Click






Next - Click  Test  Query - Show Table (register)  Data's  -  Finish Button Click
Next - Show the List View






Next - Right Click  ListItem - Select - Configure ListItem








 Open - PopUp  Window - Select a Layout & Select a Style - Options Enable Paging  =  Numeric Pager






Added  the  DataPager -  Current View = RunTime View







 Html Coding
<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
    <title></title>
</head>
<body>


    <form id="form1" runat="server">

         <asp:ListView ID="ListView1" runat="server" DataSourceID="SqlDataSource1">

             <AlternatingItemTemplate>
                <tr style="background-color: #FAFAD2;color: #284775;">
                    <td>
                        <asp:Label ID="nameLabel" runat="server" Text='<%# Eval("name") %>' />
                    </td>
                    <td>
                        <asp:Label ID="emailLabel" runat="server" Text='<%# Eval("email") %>' />
                    </td>
                    <td>
                        <asp:Label ID="mobileLabel" runat="server" Text='<%# Eval("mobile") %>' />
                    </td>
                    <td>
                        <asp:Label ID="usernameLabel" runat="server" Text='<%# Eval("username") %>' />
                    </td>
                    <td>
                        <asp:Label ID="passwordLabel" runat="server" Text='<%# Eval("password") %>' />
                    </td>
                </tr>
            </AlternatingItemTemplate>
            <EditItemTemplate>
                <tr style="background-color: #FFCC66;color: #000080;">
                    <td>
                        <asp:Button ID="UpdateButton" runat="server" CommandName="Update" Text="Update" />
                        <asp:Button ID="CancelButton" runat="server" CommandName="Cancel" Text="Cancel" />
                    </td>
                    <td>
                        <asp:TextBox ID="nameTextBox" runat="server" Text='<%# Bind("name") %>' />
                    </td>
                    <td>
                        <asp:TextBox ID="emailTextBox" runat="server" Text='<%# Bind("email") %>' />
                    </td>
                    <td>
                        <asp:TextBox ID="mobileTextBox" runat="server" Text='<%# Bind("mobile") %>' />
                    </td>
                    <td>
                        <asp:TextBox ID="usernameTextBox" runat="server" Text='<%# Bind("username") %>' />
                    </td>
                    <td>
                        <asp:TextBox ID="passwordTextBox" runat="server" Text='<%# Bind("password") %>' />
                    </td>
                </tr>
            </EditItemTemplate>
            <EmptyDataTemplate>
                <table runat="server" style="background-color: #FFFFFF;border-collapse: collapse;border-color: #999999;border-style:none;border-width:1px;">
                    <tr>
                        <td>No data was returned.</td>
                    </tr>
                </table>
            </EmptyDataTemplate>
            <InsertItemTemplate>
                <tr style="">
                    <td>
                        <asp:Button ID="InsertButton" runat="server" CommandName="Insert" Text="Insert" />
                        <asp:Button ID="CancelButton" runat="server" CommandName="Cancel" Text="Clear" />
                    </td>
                    <td>
                        <asp:TextBox ID="nameTextBox" runat="server" Text='<%# Bind("name") %>' />
                    </td>
                    <td>
                        <asp:TextBox ID="emailTextBox" runat="server" Text='<%# Bind("email") %>' />
                    </td>
                    <td>
                        <asp:TextBox ID="mobileTextBox" runat="server" Text='<%# Bind("mobile") %>' />
                    </td>
                    <td>
                        <asp:TextBox ID="usernameTextBox" runat="server" Text='<%# Bind("username") %>' />
                    </td>
                    <td>
                        <asp:TextBox ID="passwordTextBox" runat="server" Text='<%# Bind("password") %>' />
                    </td>
                </tr>
            </InsertItemTemplate>
            <ItemTemplate>
                <tr style="background-color: #FFFBD6;color: #333333;">
                    <td>
                        <asp:Label ID="nameLabel" runat="server" Text='<%# Eval("name") %>' />
                    </td>
                    <td>
                        <asp:Label ID="emailLabel" runat="server" Text='<%# Eval("email") %>' />
                    </td>
                    <td>
                        <asp:Label ID="mobileLabel" runat="server" Text='<%# Eval("mobile") %>' />
                    </td>
                    <td>
                        <asp:Label ID="usernameLabel" runat="server" Text='<%# Eval("username") %>' />
                    </td>
                    <td>
                        <asp:Label ID="passwordLabel" runat="server" Text='<%# Eval("password") %>' />
                    </td>
                </tr>
            </ItemTemplate>
            <LayoutTemplate>
                <table runat="server">
                    <tr runat="server">
                        <td runat="server">
                            <table id="itemPlaceholderContainer" runat="server" border="1" style="background-color: #FFFFFF;border-collapse: collapse;border-color: #999999;border-style:none;border-width:1px;font-family: Verdana, Arial, Helvetica, sans-serif;">
                                <tr runat="server" style="background-color: #FFFBD6;color: #333333;">
                                    <th runat="server">name</th>
                                    <th runat="server">email</th>
                                    <th runat="server">mobile</th>
                                    <th runat="server">username</th>
                                    <th runat="server">password</th>
                                </tr>
                                <tr id="itemPlaceholder" runat="server">
                                </tr>
                            </table>
                        </td>
                    </tr>
                    <tr runat="server">
                        <td runat="server" style="text-align: center;background-color: #FFCC66;font-family: Verdana, Arial, Helvetica, sans-serif;color: #333333;">
                            <asp:DataPager ID="DataPager1" runat="server">
                                <Fields>
                                    <asp:NextPreviousPagerField ButtonType="Button" ShowFirstPageButton="True" ShowNextPageButton="False" ShowPreviousPageButton="False" />
                                    <asp:NumericPagerField />
                                    <asp:NextPreviousPagerField ButtonType="Button" ShowLastPageButton="True" ShowNextPageButton="False" ShowPreviousPageButton="False" />
                                </Fields>
                            </asp:DataPager>
                        </td>
                    </tr>
                </table>
            </LayoutTemplate>
            <SelectedItemTemplate>
                <tr style="background-color: #FFCC66;font-weight: bold;color: #000080;">
                    <td>
                        <asp:Label ID="nameLabel" runat="server" Text='<%# Eval("name") %>' />
                    </td>
                    <td>
                        <asp:Label ID="emailLabel" runat="server" Text='<%# Eval("email") %>' />
                    </td>
                    <td>
                        <asp:Label ID="mobileLabel" runat="server" Text='<%# Eval("mobile") %>' />
                    </td>
                    <td>
                        <asp:Label ID="usernameLabel" runat="server" Text='<%# Eval("username") %>' />
                    </td>
                    <td>
                        <asp:Label ID="passwordLabel" runat="server" Text='<%# Eval("password") %>' />
                    </td>
                </tr>
            </SelectedItemTemplate>
        </asp:ListView>
        <asp:SqlDataSource ID="SqlDataSource1" runat="server" ConnectionString="<%$ ConnectionStrings:dbcon %>" SelectCommand="SELECT * FROM [register]"></asp:SqlDataSource>
    </form>

</body>
</html>

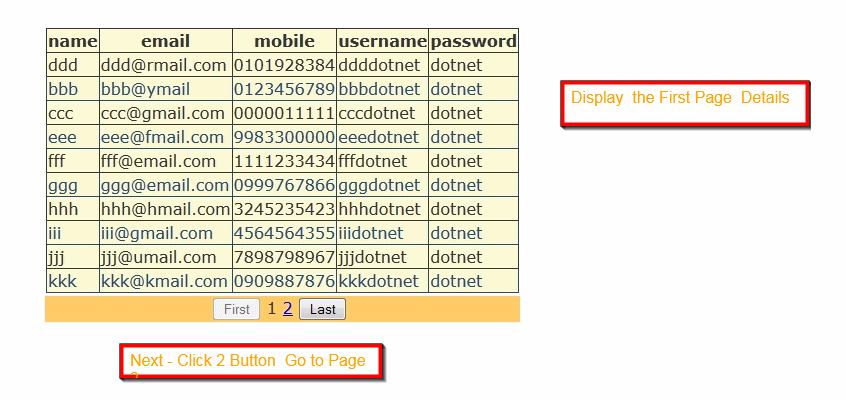

OUTPUT
Next  -  F5 Run the Web Form  -  Show the   Table(register) Details







Next - Click  the  Page = 2  - Next Page Details Show
